GS
EN 733 standardised pump with high pressure rating

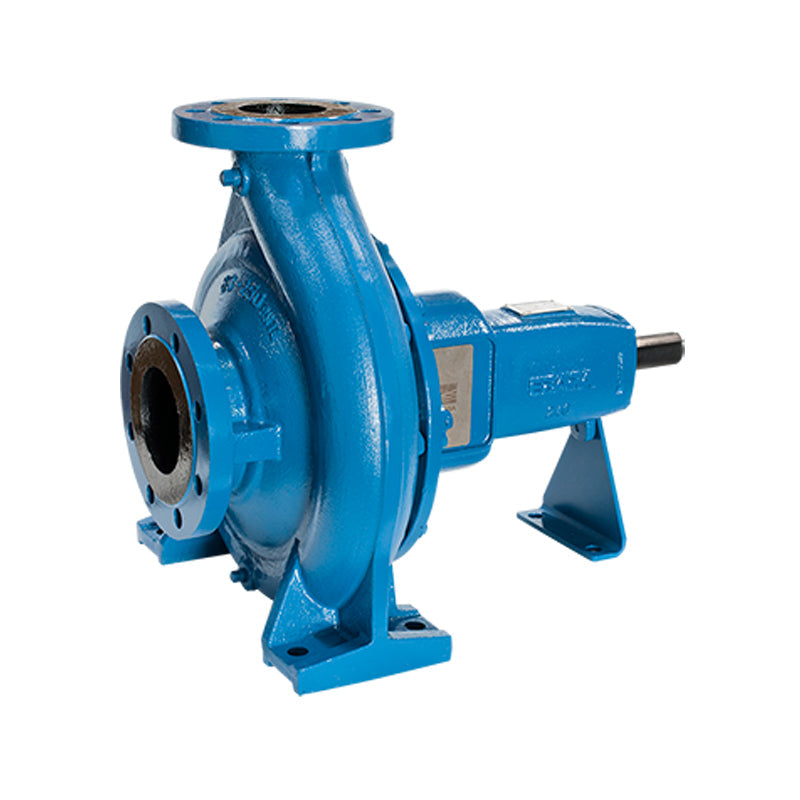

EBARA GS is a single-stage end-suction pump family designed to EN 733. A cast-iron casing, PN16 flanges and back-pull-out construction support service access. Impeller, wear-ring and seal options are selected for the pump model and fluid conditions.
Final performance and suitability are verified for the selected model and duty point.
UNDERSTAND THE APPLICATION
A solution for your application.
Application areas
Water supply and pressure boosting · HVAC and district heating/cooling · Industrial process and irrigation · Project-specific assessment for fire pump systems
Selection considerations
Assess the duty flow and head alongside liquid chemistry and suction conditions. Check the solids limits of open-impeller models separately.
Share your operating conditions with our technical team. We can assess liquid compatibility, hydraulic duty point and installation requirements together to identify the suitable variant.
MANUFACTURER DATA
Technical specifications
| Maximum flow | Up to 1,300 m³/h |
| Maximum head | Up to 150 m |
| Maximum working pressure | 16 bar |
| Liquid temperature | −10…+120 °C (depending on model and elastomer selection) |
| Standard | EN 733; PN16 flanges |
| Motor | 50 Hz; 2 / 4 pole; range up to 355 kW |
Values describe the published product family. Maximum flow and maximum head do not represent the same duty point. Verify selection against the specific model curve and current technical data.
DOWNLOADABLE RESOURCES
Technical documents
Open manufacturer PDFs and save them to your device. Check the model and document revision.
Frequently asked questions
What applications is Ebara GS used for?+
EBARA GS is a single-stage end-suction pump family designed to EN 733. A cast-iron casing, PN16 flanges and back-pull-out construction support service access. Impeller, wear-ring and seal options are selected for the pump model and fluid conditions.
Where can I find technical catalogues and manuals?+
Use the PDF links in the Technical Documents section of this page to access manufacturer documents. Check the model, frequency and document revision before use.
What information is needed for selection and a quotation?+
Share flow, total head, liquid properties, temperature, power supply and installation conditions. Mixers also require tank dimensions, liquid level and solids concentration.
