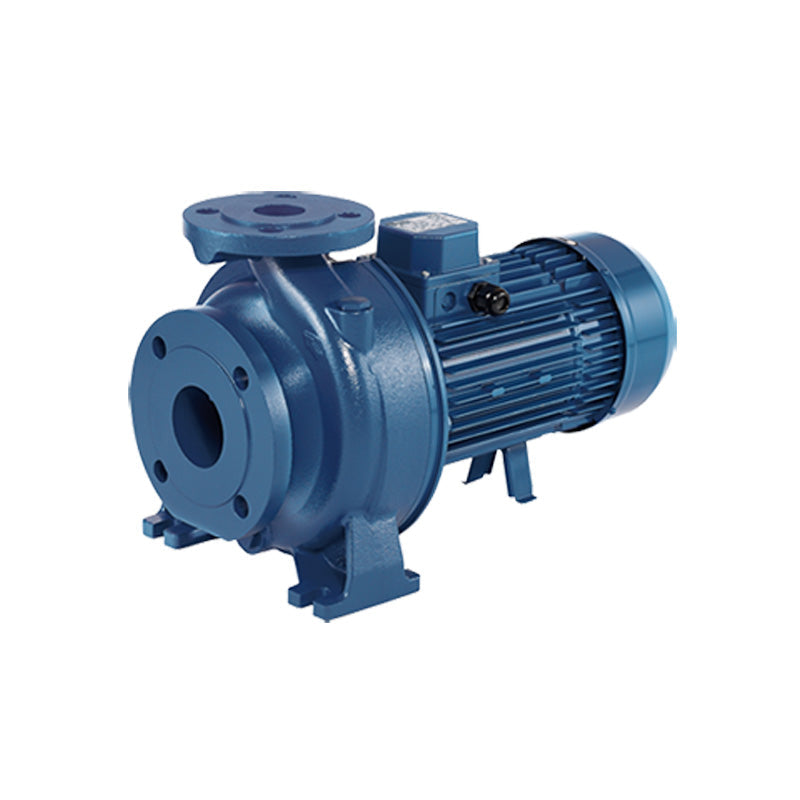

1 / 3Images from this product family. The illustrated variant may differ by model.
3D
Cast-iron monobloc standardised pump
EBARA 3D4 is an EN 733 dimensional monobloc end-suction centrifugal pump. Its cast-iron casing and stainless-steel impeller options support configurations for clean-water transfer in commercial, agricultural and industrial duties. Confirm liquid temperature and material options for the selected variant.
Final performance and suitability are verified for the selected model and duty point.
UNDERSTAND THE APPLICATION
A solution for your application.
Application areas
Water supply and pressure boosting · Fire-fighting systems · HVAC and cooling towers · Agricultural irrigation and industrial washing
Selection considerations
Assess the duty flow and head alongside liquid chemistry and suction conditions. Check the solids limits of open-impeller models separately.
Share your operating conditions with our technical team. We can assess liquid compatibility, hydraulic duty point and installation requirements together to identify the suitable variant.
MANUFACTURER DATA
Technical specifications
| Maximum working pressure | 10 bar |
| Liquid temperature | Standard −5…+90 °C; up to +110 °C or +120 °C depending on variant |
| Motor | 2 / 4 pole; IP55 |
| Casing | Cast iron |
| Impeller | AISI 304 stainless steel; material options depend on model size |
| Efficiency | MEI > 0.4 (2-pole); > 0.1 (4-pole) |
Values describe the published product family. Maximum flow and maximum head do not represent the same duty point. Verify selection against the specific model curve and current technical data.
DOWNLOADABLE RESOURCES
Technical documents
Open manufacturer PDFs and save them to your device. Check the model and document revision.
Frequently asked questions
What applications is Ebara 3D used for?+
EBARA 3D4 is an EN 733 dimensional monobloc end-suction centrifugal pump. Its cast-iron casing and stainless-steel impeller options support configurations for clean-water transfer in commercial, agricultural and industrial duties. Confirm liquid temperature and material options for the selected variant.
Where can I find technical catalogues and manuals?+
Use the PDF links in the Technical Documents section of this page to access manufacturer documents. Check the model, frequency and document revision before use.
What information is needed for selection and a quotation?+
Share flow, total head, liquid properties, temperature, power supply and installation conditions. Mixers also require tank dimensions, liquid level and solids concentration.
